AP Pipe Coilers

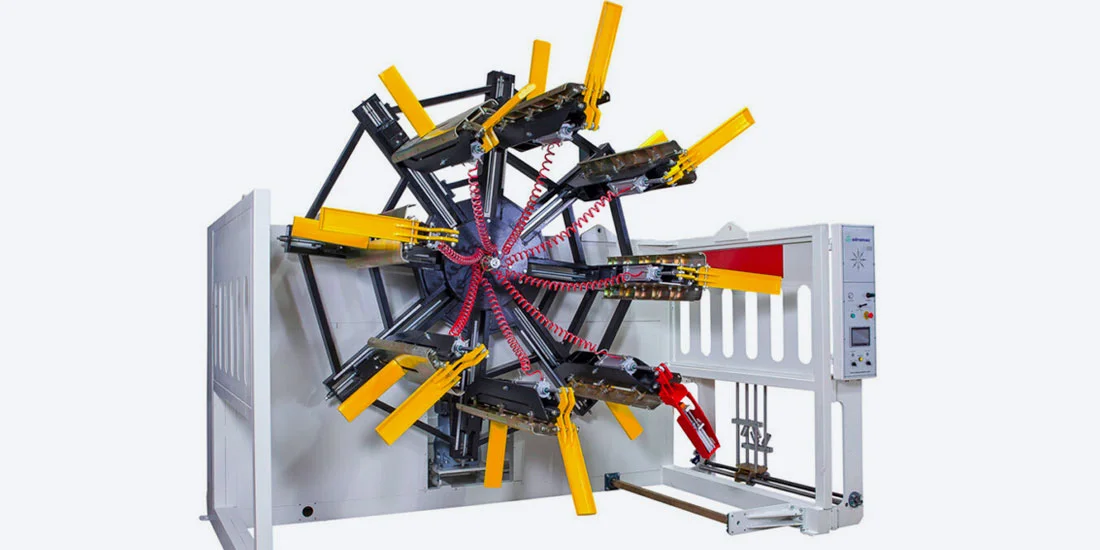

The AP Pipe Coilers provide an innovative solution for coiling pipe. Our Semi-Automatic Pipe Coiler is available in either a single station or double station coiling pipe up to 110mm. For pipe sizes above 110mm in diameter we also offer the AP Pipe Tipping Table for segment cutting and pipe stacking. Our coilers can be used in many applications including Drip Irrigation pipe coiling. Our Semi-Auto coiler can be combined with an accumulator to provide mid-range high speed solution at an economical cost. Our coilers are all servo driven assuring proper coiling and consistent coil dimensions.
What’s the Difference Between a Semi-automatic & a Fully Automatic Coiler?
While both coiling machines offer state of the art PE pipe coiling solution a semi-automatic coiler machine requires a full time operator to switch out and strap finished coils. Whereas a fully automatic coiler machine allows you to fully automate your pipe production line as the machine will switch reels, strap and eject finished coils ready for sale. AP offers two automatic pipe coiling solutions, one for round drip irrigation and PE pipe and a second specially designed for flat drip irrigation pipe capable of coiling at speeds up to 200 meters per minute.
Models Specification
| Model | Pipe Dia (mm) | No. of Stations/Flaps | Coiling Speed (m/min) |
| DMBS 16-25 | 16 – 32mm | 2 Stations / 6 Flaps | 100 m/min |
| DEMBS 16-40 | 16 – 40mm | 2 Stations / 5 Flaps | 42 m/min |
| DMBS 63 | 20 – 63mm | 2 Stations / 8 Flaps | 30 m/min |
| DMBS 110 | 50 – 110mm | 2 Stations / 8 Flaps | 20 m/min |
