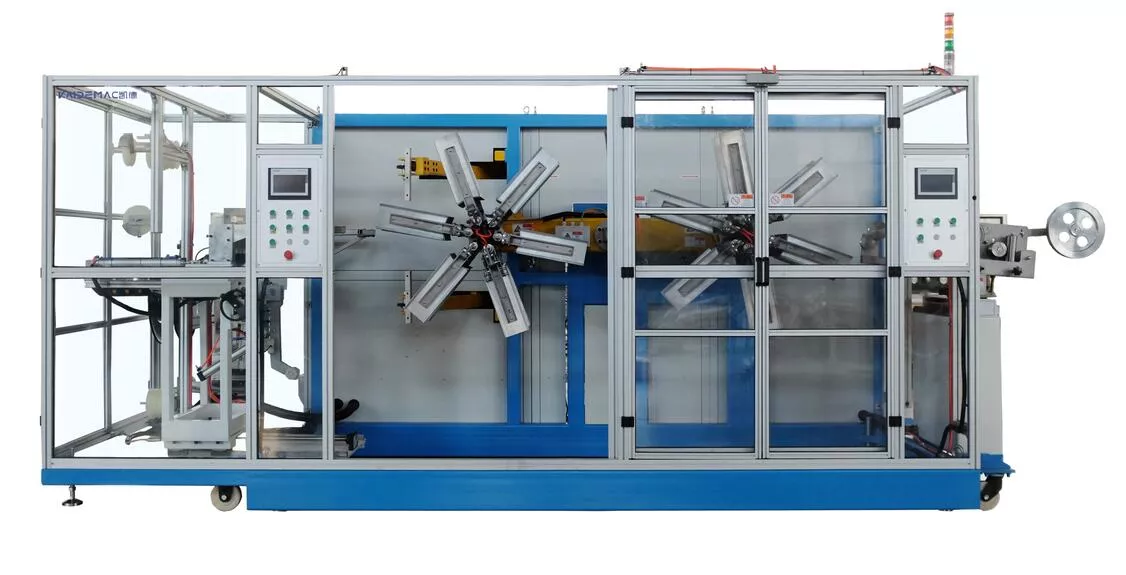

AP Fully Automatic Pipe Coiler
The AP Fully Automatic Pipe Coilers provide a world class coiling solution. Our coilers provide an automatic solution to one of the most labor intensive parts of a pipe manufacturing line. They Coil, Strap and Eject the finished coil, all without the intervention of a person. This allows faster, more efficient and consistent pipe manufacturing. AP Provides Fully Automatic coiler for both Drip Irrigation and PE pipes ranging from 6mm (1/4″) up to 63mm (2.5″)
Increase PE Pipe Manufacturing Efficiency & Reduce Manpower
Our PE pipe coiling machine transforms your current production line into a fully automatic, state-of-the art pipe manufacturing facility. This automatic reeler increases your manufacturing efficiency, reduces manpower and cost by eliminating the need for a full time operator to switch out coils.
Our automatic pipe coiler machine; coils, switches reels, straps and ejects coils ready for sale and distribution without the need of a full time operator. With a speed of up to 120 meters per minute, a pipe size range of 6mm (1/4″) up to 63mm (2.5″) and a HMI touch screen this PE pipe coiler machine is perfect for a highly customizable automated drip irrigation or plain PE pipe production process.
While producing quality pipe is important, coiling it into attractive and equal sized child is paramount to your business’s success.
AP Coiler Models
AP-STR-400
Unique coiler for short coils, utilizing 3 coiling heads for microtubing, corrugated pipes and garden hoses from 6mm up to 20mm (25mm optional). This coiler has an ultra small coil ID and uses shrink wrapping instead of strapping for the finished coils. We also offer the AP-STR-450 which is a similar coiler with a bit larger coil minimum ID (180mm) but with strapping instead of shrink wrap.
AP-AT-900
Ideal for both plain Lateral (PE pipe) and Drip Irrigation pipes of 0.8mm and above. This coiler is intended for pipe diameters from 12-25mm. Includes completely automated strapping and coil ejection
AP-AT-650
Similar to the AP-AT-900, the 650 model is a more compact coiler in both footprint and max coil size. This coiler allows coiling coils which have a smaller ID. This is ideal for the Landscape industry where short compact coils are a key product.
AP-AT-1200PE
is a coiler intended for HDPE pipes up to 32mm in diameter and a maximum coil Outer diameter of 1200mm. This coiler can work with other pipe types such as corrugated pipes and it features a unique stacker unit for the finished coils.
AP-AT-2700PE
Is a coiler intended for HDPE pipes up to 63mm (2.5″) in diameter and a maximum coil Outer diameter of 2700mm. Coiler is featuring a side by side coiling stations with full coiling, strapping and ejecting capabilities.
AP-FL-200
This coiler is for thin wall pipes, mainly flat drip irrigation pipes with 0.15-0.9mm wall thickness. This coiler uses a cardboard insert for the coils and allows you to seamlessly coil flat drip pipe from 12-25mm at up to 250 meters per minute when combined with the AP pipe accumulator, ensuring you produce coils of flat drip irrigation pipe ready for sale.
Models Specification
| Model | Pipe Dia (mm) | No. of Stations/Flaps | Coiling Speed |
| Automatic Microbe Coiler AP-STR-400 | 6 – 25mm | 3 Stations | 12 m/min |
| Automatic Round Pipe Coiler AP-AT-900 | 12 – 25mm | 2 Stations with Strapping | 120 m/min |
| Automatic Round Pipe Coiler AP-AT-650 | 12 – 25mm | 2 Stations with Strapping | 120 m/min |
| Automatic Round Pipe Coiler AP-AT-1200PE | 16 – 32mm | 2 Stations with Strapping | 60 m/min |
| Automatic Flat Pipe Coiler AP-FL-200 | 12 – 25mm | 2 Stations | 250 m/min |
